DJI SDR Transmission 2

14,420 ฿ 10,300 ฿ Save 29%
Shipping calculated at checkout.
Notification

Pre-Order 17 September 2026

Icon

Free shipping on orders over 10,000 THB
Up to 30-Day Returns

DJI Logo

1 TX to 8 RX With Control, Multi-Group Transmission[1]
Auto Channel 2.0 [2] for Seamless, Stable Feed

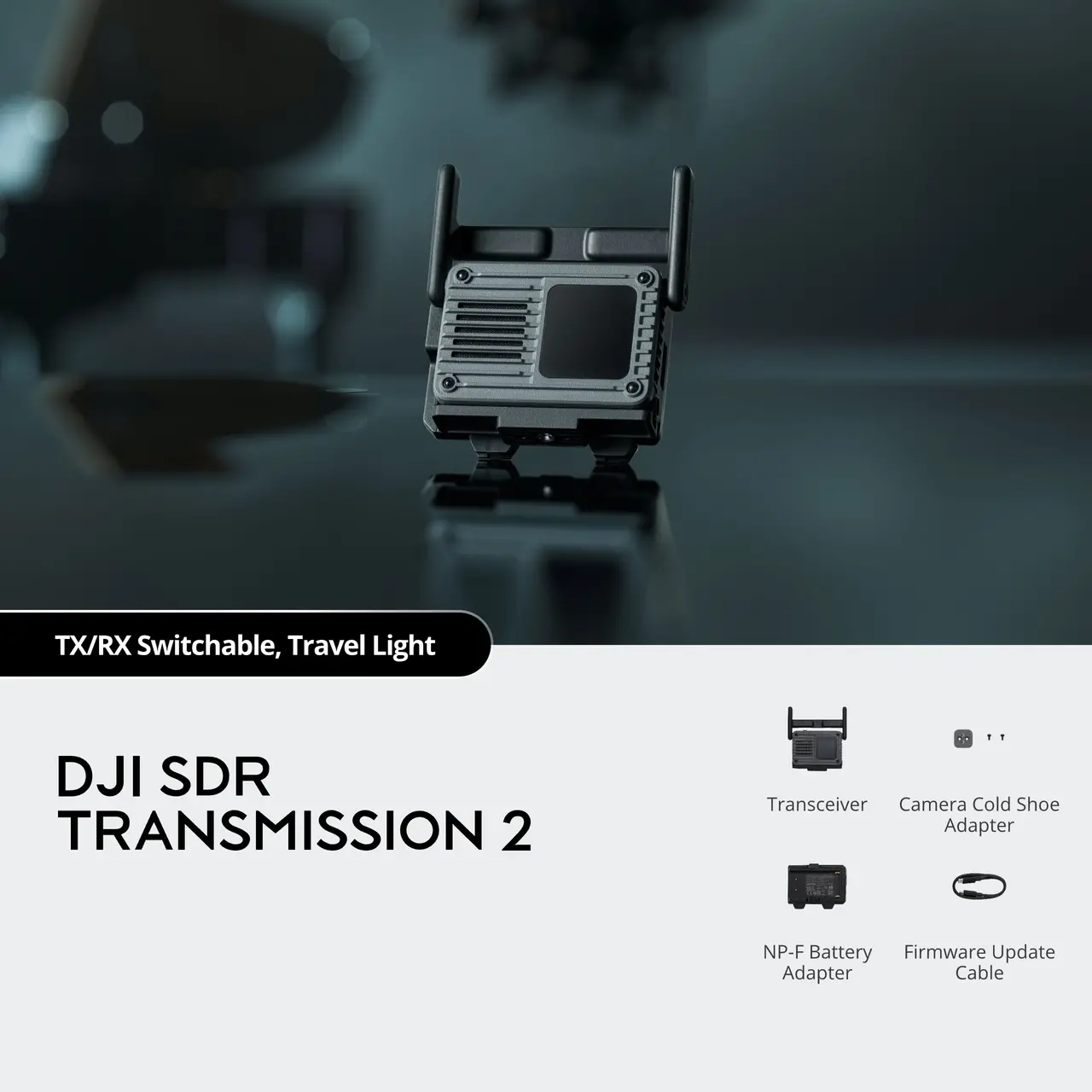

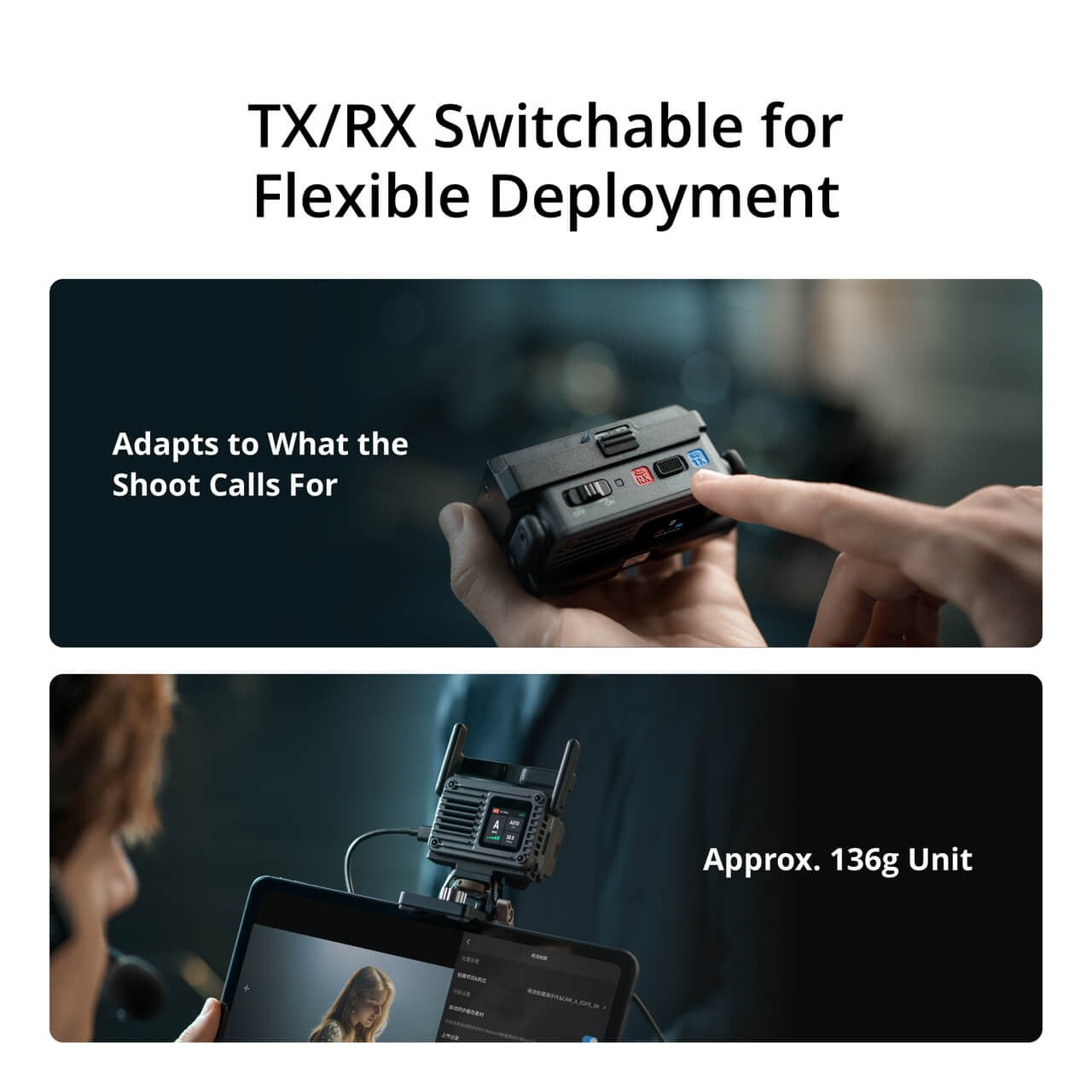

TX/RX Switchable for Flexible Deployment
Pairing-Free Connection for Fast Camera Switching
Supports Ronin [6] Monitoring & Control
DCI 4K/60fps 10-bit HDR Wireless Transmission

Select Option

Select Option

Take a Closer Look

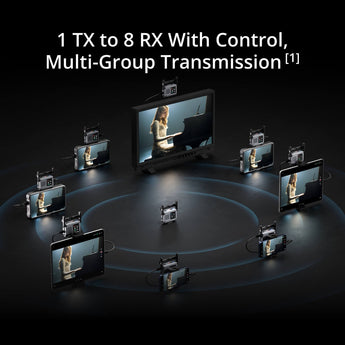

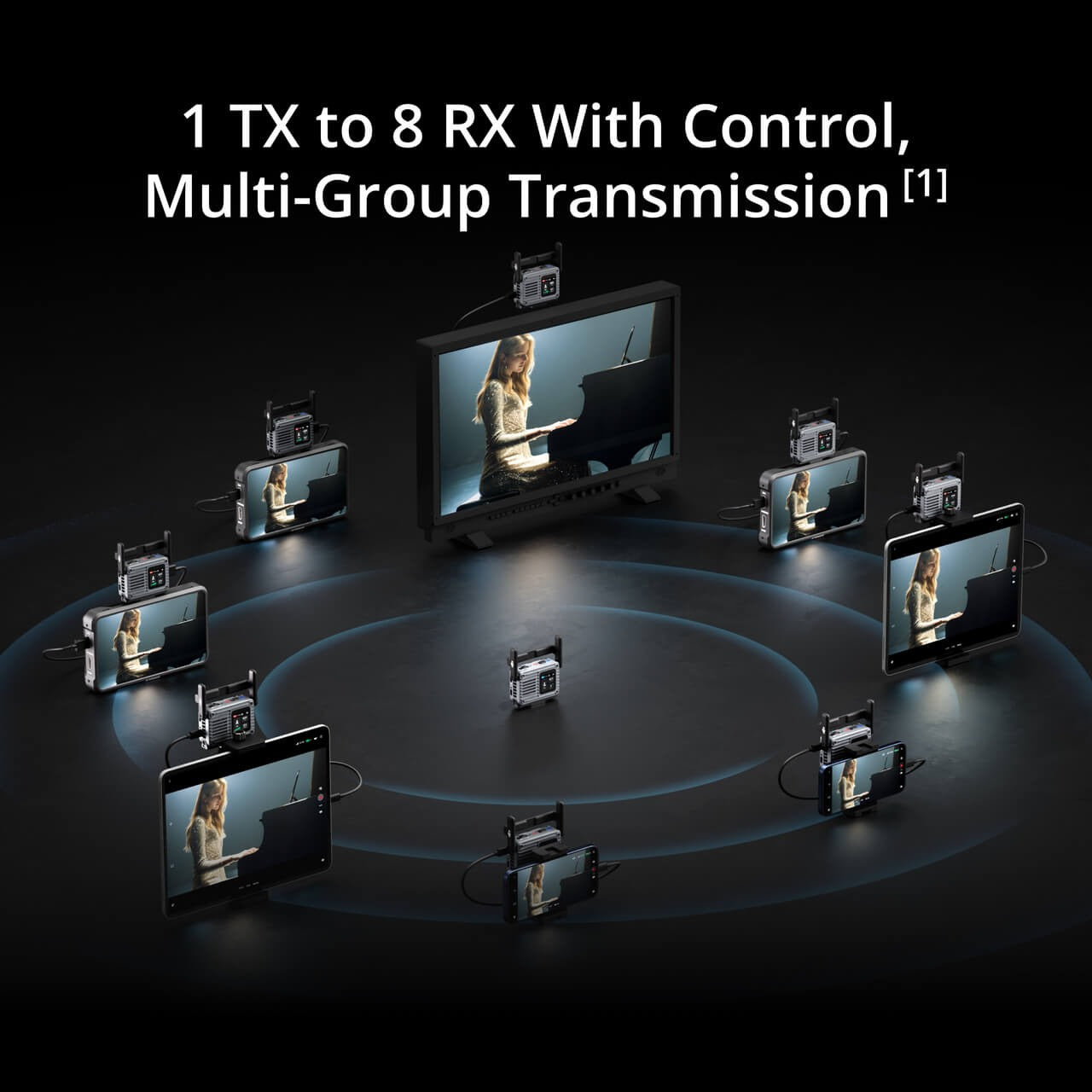

1 TX to 8 RX With Control, Multi-Group Transmission [1]

A single transmitter feeds up to eight receivers, each with remote control. Up to five transmitters and 40 receivers can operate simultaneously. Even in complex on-set environments, the wireless camera feed stays stable without sacrificing 4K image quality [3].

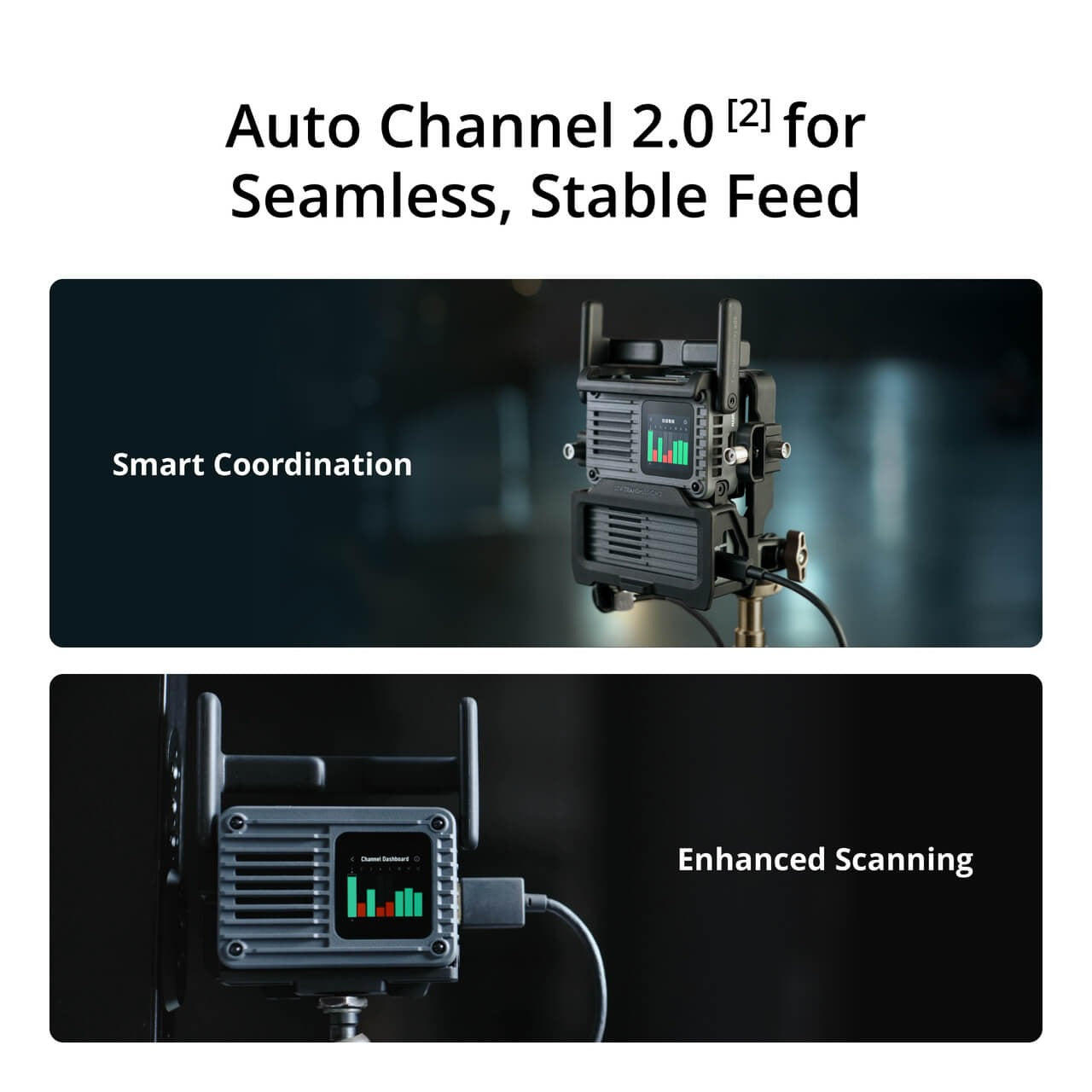

Auto Channel 2.0 [2] for Seamless, Stable Feed

With Auto Mode enabled, transceivers recognize one another and intelligently coordinate frequencies. More accurate spectrum scanning and conflict diagnostics allow each unit to hop frequencies seamlessly [9] as conditions change, maintaining a stable connection despite interference, even with multiple systems running side by side.

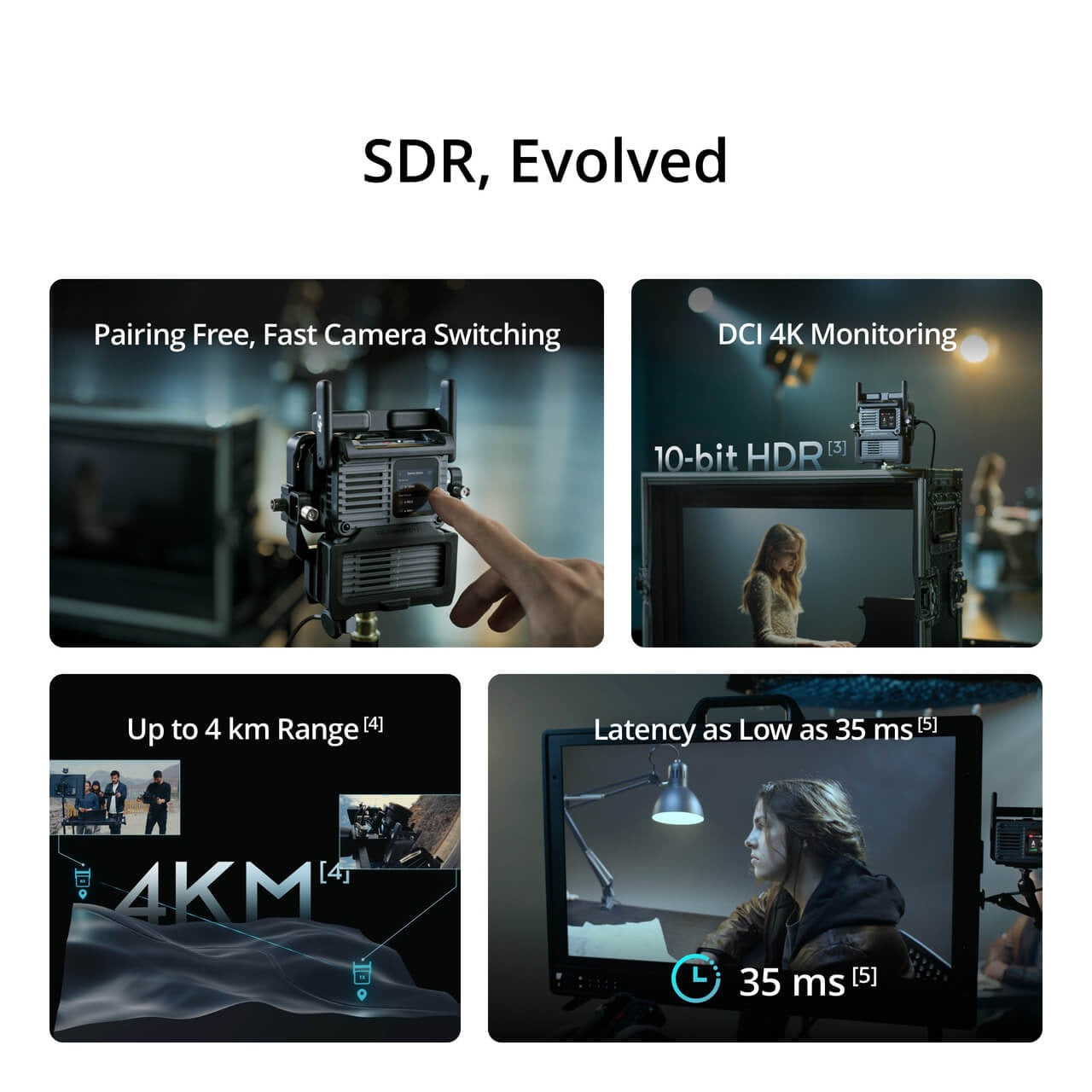

SDR, Evolved

It transmits DCI 4K/60fps, 10-bit HDR [3], and H.265 video at bitrates up to 50 Mbps [10] for ultra-high-definition monitoring. The transmission range reaches up to 4 km [4], easily handling everything from stadiums to dynamic car shoots. With latency as low as 35 ms [5], the video feed is near-instant, making remote commands like focus pulls and gimbal moves highly responsive.

SDR, Evolved

It transmits DCI 4K/60fps, 10-bit HDR [3], and H.265 video at bitrates up to 50 Mbps [10] for ultra-high-definition monitoring. The transmission range reaches up to 4 km [4], easily handling everything from stadiums to dynamic car shoots. With latency as low as 35 ms [5], the video feed is near-instant, making remote commands like focus pulls and gimbal moves highly responsive.

Pro Monitoring, Flexible Output

Quickly switch between camera feeds directly from the transceiver or the DJI Ronin app. Output the ultra-high-definition, low-latency video feed to pro monitors via SDI [11], HDMI, or DP ports. You can also connect a smartphone or tablet to the receiver [12] via USB-C for a stable, high-bitrate wired monitoring feed.

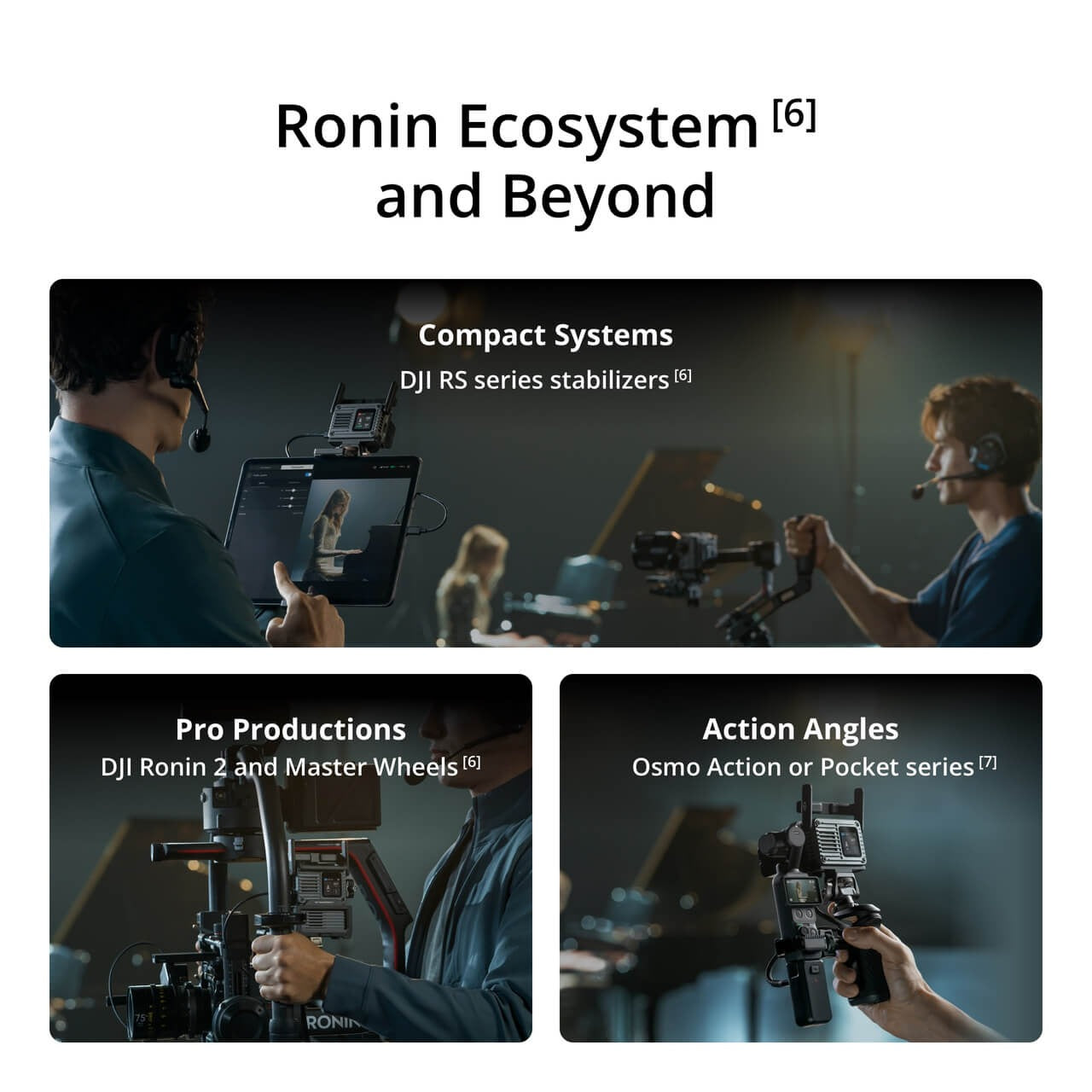

Ronin Ecosystem [6] and Beyond

When paired with DJI RS series gimbals [6], you can wirelessly control gimbal movements and trigger recording with your smartphone. Connect to DJI Ronin 2 and Master Wheels [6] to precisely control heavy cinema cameras on car mounts or crane rigs. Or, link an Osmo Action or Pocket series device [7] for a lightweight setup to capture sports and other unique angles.

* Actual experience may vary depending on the environment, usage, and firmware version. For details, visit the product page on the official DJI Store.
1. For the optimal transmission experience, it is recommended to operate no more than five transmitters simultaneously in the same area. DJI SDR Transmission 2 cannot be cross-connected with other DJI video transmission products.
2. Auto Channel 2.0 activates when Channel Mode is set to Auto.
3. DCI 4K/60fps HDR requires connection via the HDMI or DP port (bottom USB-C port) on the transceiver main unit.
4. Measured under CE compliance using one TX and one RX in open, unobstructed, and interference-free controlled conditions.
5. Camera and screen display latency are not included. Measured when shooting 1080p/60fps and 4K/60fps video.
6. Supported models include DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2, and Master Wheels. Please note: When using with Ronin 2 or Master Wheels, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) is required (sold separately). When using with RS 4, RS 4 Pro, or RS 3 Pro, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to CAN) is required (sold separately).
7. Supports Osmo Action 6 and Osmo Pocket series (Osmo Pocket 4 and later) via USB-C for monitoring and power supply.
8. Compared to DJI SDR Transmission, this product features the upgraded Auto Channel 2.0, delivering better transmission performance when multiple groups of transmitters and receivers operate simultaneously. It supports video quality up to DCI 4K/60fps with a maximum encoding bitrate of 50 Mbps, and a transmission range of up to 4 km.
9. The 5.8 GHz and DFS frequency bands are prohibited in certain countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.
10. The maximum encoding bitrate is 50 Mbps, measured under controlled conditions. Actual encoding and transmission bitrates may vary depending on the environment and transmission distance.
11. The SDI port is available on the DJI SDR Transmission 2 Expansion Plate, which is sold separately.
12. Connect the transceiver (RX) to a smartphone or tablet via a USB-C to USB-C or USB-C to Lightning cable. Cable is not included.
